TSD-30C

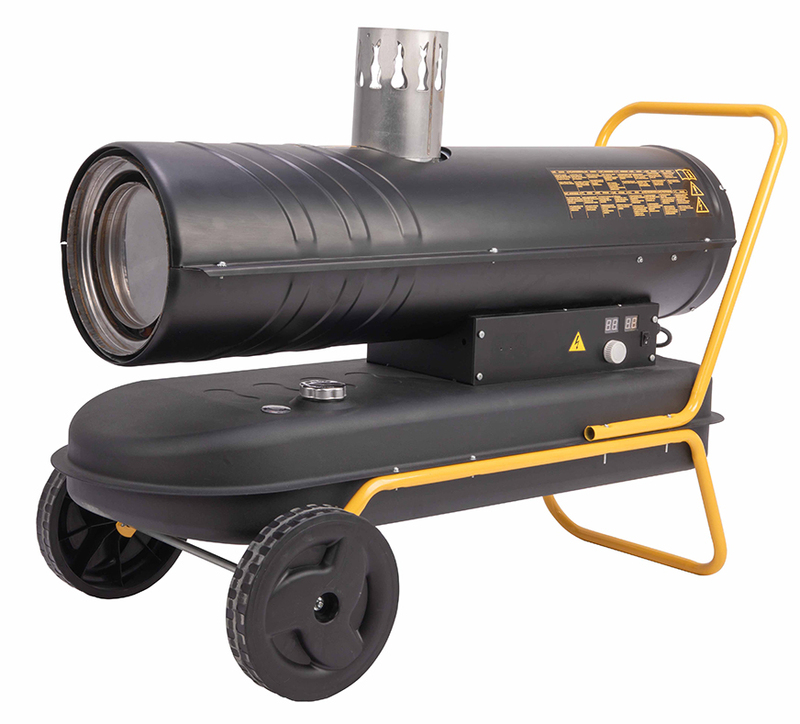

Industrial Diesel Heater
1. Mobile air heater，10/15KW without wheel
2. Function on diesel oil or kerosene
3. Stainless steel combustion chamber with fan cooling
4. With flame sensor
5. If no oil , heater will cut off the power
6. Fixed Oil display
7.Cut-off protection,re-plugged in will not work automatically
8.Low pressure atomization,combustion completely
9.Waterproof class IP24
10. With P.C.panel to smart setting temperature
11. Suitable for open or well ventilated areas like factories, warehouses or construction sites
Certificates: CE /LVD /EMC /RoHS
Model | Heating output | Tank capacity | Fuel consumption | Air | Packing | N.W. | G.W. | Product Meas. | Packing Meas. | Qty/20GP | Qty/40GP | Qty/40HQ |
pcs/ctn | kgs | kgs | mm | mm | pcs | pcs | pcs | |||||
TSD-15 | 220-240 ~ 50Hz 15KW | 19L | 1.2 Kg/h | 550 | 1 | 11.2 | 12.8 | 660x260x380 | 710x310x410 | 305 | 635 | 750 |
TSD-20 | 220-240 ~ 50Hz 20KW | 19L | 1.7 Kg/h | 550 | 1 | 16.4 | 18.7 | 790x390x530 | 795x370x440 | 207 | 438 | 515 |
TSD-30 | 220-240 ~ 50Hz 30KW | 36L | 2.5 Kg/h | 720 | 1 | 19.2 | 21.5 | 840x440x560 | 890x400x480 | 158 | 335 | 395 |
TSD-50 | 220-240 ~ 50Hz 50KW | 56L | 4.0 Kg/h | 1100 | 1 | 24.5 | 27.5 | 1065x480x695 | 1080x400x480 | 120 | 254 | 300 |
TSD-70 | 220-240 ~ 50Hz 70KW | 56L | 4.8 Kg/h | 1100 | 1 | 26.6 | 29.8 | 1065x480x695 | 1090x440x530 | 105 | 220 | 259 |
TSD-100 | 220-240 ~ 50Hz 100KW | 69L | 8.0 Kg/h | 1300 | 1 | 40.8 | 45.8 | 1215X580X705 | 1110X505X680 | 73 | 157 | 185 |
TSD-20C | 220-240 ~ 50Hz 20KW | 38L | 1.7 Kg/h | 750 | 1 | 22.0 | 24.4 | 845x445x620 | 890x400x480 | 105 | 335 | 390 |
TSD-30C | 220-240 ~ 50Hz 30KW | 56L | 2.5 Kg/h | 850 | 1 | 30.5 | 34.0 | 1045X480X762 | 1090X440X530 | 105 | 220 | 259 |
